DIN ball valves
Ball valves are fittings with a perforated ball inside. Due to their design, the valve can be fully opened or closed with just a 90° turn. This is a major advantage over gate valves or globe valves. Ball valves are available in full bore and reduced bore versions.
The key characteristics of ball valves
Ball valves are low-maintenance fittings with full bore openings that offer minimal flow loss and high sealing performance thanks to a rotatable ball. Metal-seated versions are also suitable for high-temperature applications. They are versatile, easy to operate, and ideal for industrial use with media such as water, gas, or chemicals.
Please contact us for custom inquiries regarding ball valves in pressure ratings PN 10–100.
Optimized flow through full bore design
Full bore ball valves have a ball opening that matches the inner diameter of the pipe. This results in minimal flow loss—ideal for high flow rates and piggable systems.
Temperature-resistant and flexible in sealing design
Depending on temperature requirements, soft-seated or metal-seated options are available. Soft-seated versions can be used up to approximately 200 °C, while metal seats are suitable for significantly higher temperatures—individually tailored to your application.
Easily automated and quick to operate
Ball valves can be opened and closed in just 90 degrees using a handle, gearbox, or actuator—faster than many other valve types. They are bidirectional and ideally suited for automated processes.

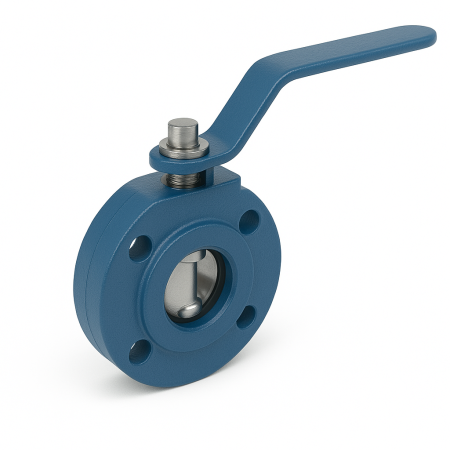

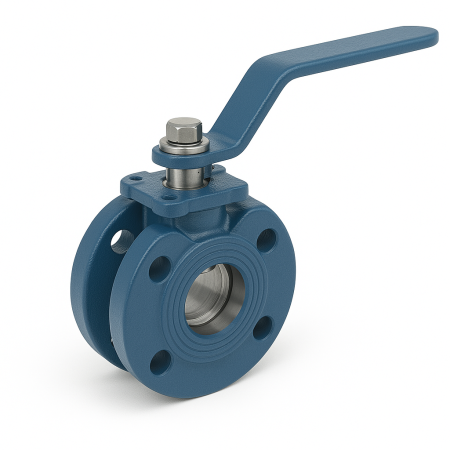

Häger Wafer-Type Ball Valve | Between Flanges
Datasheets
DN: 15–150
PN: 16
Body Materials: 1.0619, A216 WCB, 1.4408, 1.4306, 1.4404, 1.1138, 1.4308, 1.5419, 1.7357, 1.7379, CF8M, CF3M, CF3, WC1, WC6, WC9, LCB, LCC, Duplex, 1.4462, A890 6A, A995 6A, CD3MWCuN, F55, A351-CD3MN, A995-4A, Hastelloy C-276, GP250GH, Super Duplex, F51, A995-5A
Description of our ball valves:
The ball valve is optionally supplied with an ISO top mounting flange according to ISO 5211 for direct actuator installation.
Blowout-proof stem.
Valves come with a declaration of conformity and CE marking according to 2014/68/EU.
Connections are flange type (EN 1092-1).
Optional TA-Luft (Technical Instructions on Air Quality Control) systems according to VDI 2440 are available upon request.

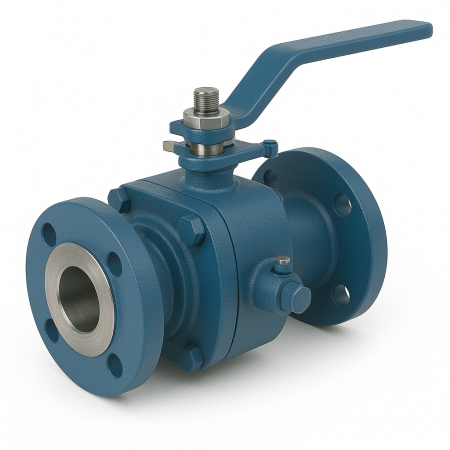

Häger 2-Piece Ball Valve PTFE / TFM-1600 up to 180°C - Face-to-Face Length Series 26 + 27 (Short + Long)
Datasheets
DN: 15–500
PN: 16, 25, 40
Body Materials: 1.0619, A216 WCB, 1.4408, 1.4306, 1.4404, 1.1138, 1.4308, 1.5419, 1.7357, 1.7379, CF8M, CF3M, CF3, WC1, WC6, WC9, LCB, LCC, Duplex, 1.4462, A890 6A, A995 6A, CD3MWCuN, F55, A351-CD3MN, A995-4A, Hastelloy C-276, GP250GH, Super Duplex, F51, A995-5A
Description of our ball valves:
Floating ball, split body, and full bore design
Metal-seated version particularly suitable for high temperatures — antistatic
Face-to-face dimensions according to DIN EN 558-1
Optionally supplied with ISO top mounting flange per ISO 5211 for direct actuator installation
Blowout-proof stem
Valves come with declaration of conformity and CE marking according to 2014/68/EU
Connection available in flanged design (EN 1092-1) and optional welded ends
Optional TA-Luft (Technical Instructions on Air Quality Control) systems according to VDI 2440 available upon request
Full bore design
Available with hollow or solid ball
Depending on material selection, the ball valve is suitable for water, steam, oil, gas, or other media
ISO-TOP flange (for mounting an actuator)
Actuation options: pneumatic, electric, hydraulic, gas-over-oil, or with gearbox & handwheel
Insulating extension / stem extension – also available for underground installations
Special coatings available to meet customer requirements
TA-LUFT compliance according to VDI 2440
Stellite-faced versions available (STELLITE)
Emission leak test according to EN ISO 15848-2 B
Operating and maintenance manuals for gate valves available in various languages
EAC TR-TS conformity declarations of the Customs Union available independently of order for export and use in the Russian Federation, Belarus, or Kazakhstan (EAC), valid for 1, 3, or 5 years. EAC GOST TR TS 010/2011 (Machinery Directive) or EAC GOST TR TS 032/2013 for valves DN25 and above
Valve passport TP according to GOST 2.601 – 2006
TÜV inspections (3.2)
PN 16 | 25 | 40 Baulänge Reihe 27 + 28 kurz & lang:

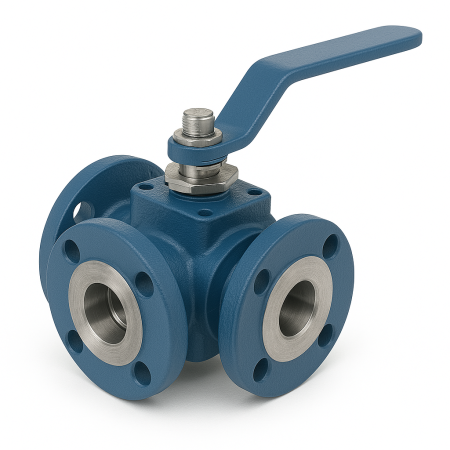

Häger 3-Way Flanged Ball Valve | Flanged Connection EN 1092-1 With L-port or T-port PTFE / TFM-1600 up to 180°C *Other seals for higher temperatures available on request
Description of our ball valves:
Available with L-port or T-port
Metal-seated version especially suitable for high temperatures — antistatic
Face-to-face dimensions according to DIN EN 558-1
Optionally supplied with ISO top mounting flange per ISO 5211 for direct actuator installation
Blowout-proof stem
Valves come with declaration of conformity and CE marking according to 2014/68/EU
Connection available in flanged design (EN 1092-1) and optional welded ends
Optional TA-Luft (Technical Instructions on Air Quality Control) systems according to VDI 2440 available upon request
Full bore design
Hollow or solid ball
Depending on material selection, the ball valve is suitable for water, steam, oil, gas, or other media
ISO-TOP flange (for actuator mounting)
Actuation options: pneumatic, electric, hydraulic, gas-over-oil, or via gearbox & handwheel
Insulation extension / stem extension – also available for underground installations
Special coatings available according to customer requirements
TA-LUFT compliance according to VDI 2440
Stellite-faced versions available (STELLITE)
Operating and maintenance manuals for gate valves available in various languages
TÜV certifications (3.2)

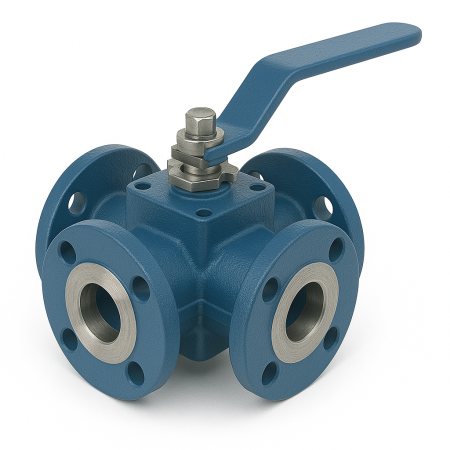

Häger 4-Way Flanged Ball Valve | Flanged Connection EN 1092-1 With X-port PTFE / TFM-1600 up to 180°C *Other seals for higher temperatures available on request
Description of our ball valves:
With X-port
Seals available in PTFE, PEEK, RPTFE, or metal
Metal-seated version especially suitable for high temperatures — antistatic
Face-to-face dimensions according to DIN EN 558-1
Optionally supplied with ISO top mounting flange per ISO 5211 for direct actuator installation
Blowout-proof stem
Valves come with declaration of conformity and CE marking according to 2014/68/EU
Connection available in flanged design (EN 1092-1) and optional welded ends
Optional TA-Luft (Technical Instructions on Air Quality Control) systems according to VDI 2440 available upon request
Full bore
Hollow ball or solid ball
Depending on material selection, the ball valve is suitable for water, steam, oil, gas, or other media
ISO-TOP flange (for actuator mounting)
Actuation options: pneumatic, electric, hydraulic, gas-over-oil, or via gearbox & handwheel
Insulation bonnet / stem extension – also available for underground installations
Special coating available according to customer requirements
TA-LUFT according to VDI 2440
Stellite-faced versions (STELLITE)
Operating and maintenance manuals for gate valves available in multiple languages
TÜV approvals (3.2)
Häger Ball Valve | Trunnion Mounted Ball | Double Block & Bleed PTFE / RPTFE / NYLON or Metal-Seated
Full bore
Double Block & Bleed
Trunnion mounted ball for particularly demanding processes
Pressure ratings: PN 16, 25, 40, 64, or 100
Flanged connection or welded ends with radiographic testing
Also available in fire-safe design
Inspection certificate according to EN 10204-3.1 + API 598
ChatGPT: Häger 2-Piece Stainless Steel Ball Valve – Socket Weld Ball Valve
Datasheets
2-Piece Ball Valve
DN: 1/4″ – 3″
PN: 64
Body Materials: 1.4408 / CF8M
Description of our ball valves:
Full bore
1000 WOG, pressure rating PN 64
Internal threads according to DIN 2999 & BS 21, ISO 228/1 & ISO 7/1, NPT ANSI B1.20.1
Blowout-proof stem
Inspection certificate including pressure test according to EN 10204-3.1 + API 598
Connections available as flanged (EN 1092-1) and weld ends
STOCK ITEMS
Full bore
1000 WOG
PN 64
Female threaded ends (internal thread)
Blow-out proof stem
Inspection certificate according to EN 10204-3.1 + API 598
Häger 2-Piece Hastelloy Ball Valve for Chlorine Applications, Metal-Seated
Datasheets
2-Piece Ball Valve
DN: 6 – 50 or larger
PN: 16 or higher
Body Material: Hastelloy C-276 or A494 CW12MW cl.1
Full bore
PN 16 or higher
Up to 400°C / High-temperature design
Hastelloy C-276
Blow-out proof stem
Metal-seated
Extended stem for actuator mounting
ISO TOP 5210
Suitable for chlorine applications, nitrogen, chlorine gas
Additional Information about Ball Valves
Here you can find more information about our services as well as important details to help you make informed decisions for your new industrial valve.
Floating Ball or Trunnion Mounted Ball
Differences Between 2-Way and 3-Way Ball Valves
✓ 2-way ball valves are absolute classics. This ball valve type features one inlet and one outlet, allowing flow to be switched between only two paths.
✓ 3-way ball valves have, in addition to the inlet and outlet, an extra connection point. This allows an additional pipeline to be connected to the ball valve. Using an L-port, the desired flow outlet can be selected.
Differences Between 2-Way and 3-Way Ball Valves
Body, Ball, Seat Ring, Shaft, Stem Packing
The ball valve is available in a wide range of sizes and pressure ratings, with flanged or welded ends, and comes in one-piece, two-piece, or three-piece body designs. Operation of the ball valve can be done via a manual lever, handwheel, electric actuator, or pneumatic actuator.
Why Choosing a Ball Valve from Our Range Puts You on the Right Side
The ball valve from our product range is a high-quality industrial valve, perfectly suited for your system. It is manufactured in sizes from ½ inch to 36 inches, available in carbon steel or stainless steel, with either soft or metal-to-metal sealing options. Depending on customer requirements, the ball valve can be upgraded with a stem packing compliant with TA-LUFT standards. In addition to flanged connections, the valve is also available with welded ends. Optional X-ray inspection for the welded ends is offered to immediately detect any possible cracks.
Ball Valve for Chlorine Applications
Chlorine, hydrogen, caustic soda, and sodium chloride are fluids that require special valve properties. Hastelloy C-276, along with numerous other special materials like titanium or Inconel, are used in these applications. For these demanding conditions, we not only use PTFE as a sealing material but also rely on metal-to-metal sealing seats with Stellite 20/21 overlays. The metal-sealing design allows for a temperature range of up to 400°C. Depending on requirements, all wetted parts can be manufactured from special materials.
Advantages at a Glance
Good piggability (due to full bore design)
Excellent tightness
Very wide range of nominal sizes
Fast opening and closing of the shut-off device
Available in various pressure ratings
Along with butterfly valves, they are representatives of 90-degree industrial valves
Mainly used for shutting off pipelines, but can also be used for throttling or control purposes
