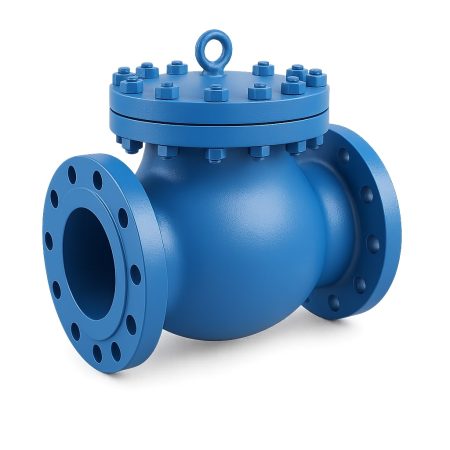

Häger GmbH & Co. KG DIN Check Valves spring loaded
The check valve operates almost autonomously within the pipeline. The spring-loaded check valves open due to the pressure in the pipeline acting against a spring. When the pressure in the line decreases, the valve closes.
Key Features of Check Valves
Spring-loaded check valves with a regulating cone also allow flow regulation, prevent backflow of media, and are available in nominal sizes DN 40 to DN 900 with flange or butt-weld ends for horizontal or vertical installation. For special requirements, versions with Inconel springs and optional heavy-duty hooks for larger nominal sizes are available.
Spring-loaded check valve with regulating cone
Spring-loaded check valves offer the ability to regulate the medium by integrating a regulating cone. This allows precise control of the flow and ensures efficient operation.
Versatile installation positions and nominal sizes
Check valves can be installed both horizontally and vertically in pipelines. They are available in nominal sizes from DN 40 to DN 900, providing flexible adaptation to various system requirements.
Flexible materials and easy installation
In addition to standard materials, spring-loaded check valves can also be supplied with spring components made of Inconel for special applications. For larger nominal sizes, we offer the option to equip them with a heavy-duty lifting hook to facilitate installation.
Häger Spring-Loaded Check Valve Range
Datasheets
DN: 40-900
PN: 16, 25, 40, 64, 100
Body materials: 1.0619, A216 WCB, 1.4408, 1.4306, 1.4404, 1.1138, 1.4308, 1.5419, 1.7357, 1.7379, CF8M, CF3M, CF3, WC1, WC6, WC9, LCB, LCC
Description of our shut-off valves:
- Face-to-face dimensions according to DIN EN 558-1.
- This industrial valve operates completely autonomously and is opened by the fluid flow.
- Valves come with a declaration of conformity and CE marking according to 2014/68/EC.
- Connection options include flange ends (EN 1092-1) or butt weld ends.
- Bolted cover.
Valve disc available in various materials
Spring also available in INCONEL or similar materials
Depending on material choice, check valves are suitable for water, steam, oil, gas, or other aggressive media
Special coating according to customer requirements
Operating and maintenance manuals for shut-off valves available in various languages
EAC TR-TS conformity declarations of the Customs Union independent of orders for export and use of products in the Russian Federation, Belarus, or Kazakhstan (EAC), valid for 1, 3, or 5 years
EAC GOST TR TS 010/2011 (Machinery Directive) or EAC GOST TR TS 032/2013 for valves larger than and including DN25
Valve passport TP according to GOST 2.601 – 2006
TÜV certifications (3.2)
