Häger GmbH & Co. KG DIN strainers
The strainer prevents contamination in the pipeline with its built-in filter basket. The flowing liquids and gases may contain impurities, which are filtered out by the strainer’s filter basket. This ensures that the pipeline and downstream valves are protected from contamination and damage.
The key features of strainers
Strainers with customizable mesh sizes filter solids from the medium, protecting downstream components and increasing system efficiency. The strainer basket is typically made of stainless steel and can be removed for cleaning. They are available with flanged or weld ends. For larger nominal sizes, we offer heavy-duty lifting lugs. After opening, we recommend replacing the gasket and conducting a new pressure test.
Adjustable mesh size and easy maintenance
The mesh size of the filter can be adjusted according to the size of the particles to be filtered. The filter insert can be easily emptied by removing the strainer’s cover.
After cleaning and reassembling the cover, a pressure test according to EN 12266-1 should be performed.
Recommended Gasket Replacement
After each maintenance of the strainer, the cover gasket must be replaced to ensure optimal sealing.
This helps prevent leaks and ensures the safe operation of the system.
Versatile materials and easy installation
The strainer basket is made of stainless steel as standard but is also available in other materials. The strainer can be configured with a flanged connection according to EN 558-1 or with a weld end.

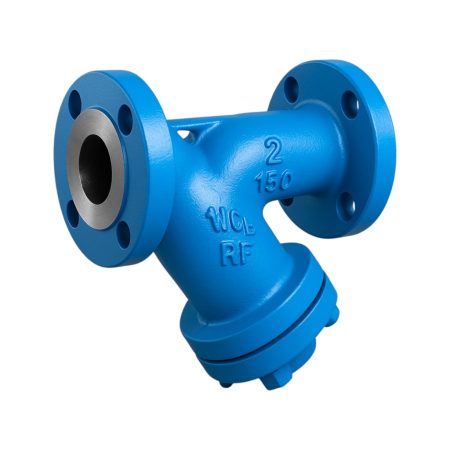

Häger strainers in oblique seat design
Datasheets
DN: 15-600
PN: 16, 25, 40, 64, 100
Body materials: 1.0619, A216 WCB, 1.4408, 1.4306, 1.4404, 1.1138, 1.4308, 1.5419, 1.7357, 1.7379, CF8M, CF3M, CF3, WC1, WC6, WC9, LCB, LCC
Description of our strainers:
Face-to-face dimension according to DIN EN 558-1.
The strainer is ideal for capturing foreign particles in the pipeline.
The mesh or filter can be removed from the top.
Filters/meshes are available in different mesh sizes to meet every customer requirement.
Valves come with a declaration of conformity and CE marking according to 2014/68/EC.
Connection options include flanged ends (EN 1092-1) and welded ends.
Screwed cover.
Screen / filter available in stainless steel and other materials
Easy removal of the screen
Depending on material selection, strainers are suitable for water, steam, oil, gas, or other media
TA-LUFT compliant according to VDI 2440
Operating and maintenance manuals for the gate valves can be provided in various local languages
EAC TR-TS conformity declarations of the Customs Union available independently of orders for export and use of products in the Russian Federation, Belarus, or Kazakhstan (EAC), valid for 1, 3, or 5 years
EAC GOST TR TS 010/2011 (Machinery directive) or EAC GOST TR TS 032/2013 for valves DN25 and larger
Valve passport TP according to GOST 2.601 – 2006
TÜV approvals (3.2)
